RETRO FISH TOA 5'6" - INTERNAL RAIL PREPARATION


Internal Rail Preparation (Work time – 2 hours)

Once the bottom and deck plywood are glued it’s time to prepare lateral sides for rails attachment.

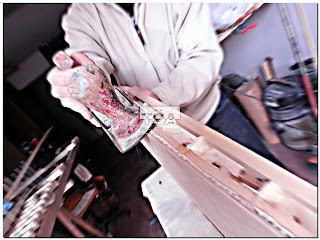

to smooth with a plane

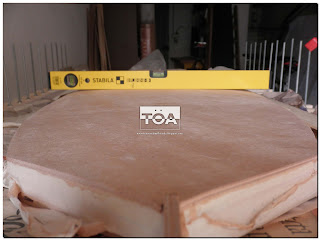

to check first layer interface

Rails attachment wil be done in a second stage after installation of internal tail & nose reinforcements

venerdì 20 aprile 2012

RETRO FISH TOA 5'6" - TO GLUE DECK PLYWOOD


To glue Deck Plywood (Work time – 1 hours + 24 h glue drying time)

cover rails with paper Scotch tape

domed deck look pretty good!


domenica 15 aprile 2012

RETRO FISH TOA 5'6" - TO GLUE BOTTOM PLYWOOD


To Glue Bottom Plywood (Work time – 1 ½ hours + 24 h glue drying time)

Once the fishbone is ready, internal struct. can be glued to the bottom plywood:

_ Lay down frames/Spine on bottom to mark out position on it using pencil

_ Place marked bottom plywood on the ART

_ Lay the polyurethane wood glue between mark lines in way of structure

_ press internal structure on bottom plywood using cross bar

_ wait for 24 h for drying glue time




Glue the frame to the bottom planks using the rocker table

Pressing the skin into the frame


Frame is now attached to the bottom planks

mercoledì 4 aprile 2012

RETRO FISH TOA 5'6" - BOTTOM AND DECK CUT-OUT


Bottom & Deck marine ply cut-out (Work time – 1 hour)

We have cutted a 3mt x 1.5 mt timber frame of 3mm marine plywood.
We’ ll use it for:
Deck
Bottom
Spine (2 x 3mm glued together)
Spine for our next project (3 x 3mm glued together for TOA wave SUP 9')

_ Prepare a nesting(*) of all above components in accordance to the available overall plywood dimension.

_ cut each component using jig saw and paper template
Nesting on available marine plywood

Aggiungi didascalia

Deck
Bottom
(*) fundamental operation reducing waste material
